Viewing Directional Surveys

Directional surveys can be displayed using either the Inspect tool () or the DataCard. If licensed for directional surveys, using Import Manager, import proprietary directional surveys for Canadian wells.

AccuMap calculates missing true vertical depths using measured depths when querying, contouring, and posting user tops. Where a user KB is available, it is displayed colored red; otherwise the system KB is displayed colored black. System directional surveys in AccuMap are referenced as true north, not grid north.

To colour wellbores based on the formation they penetrate, or to import proprietary directional surveys, see Related Topics below.

To view directional surveys

With a DataCard for the desired well displayed, click the Dir Survey tab.

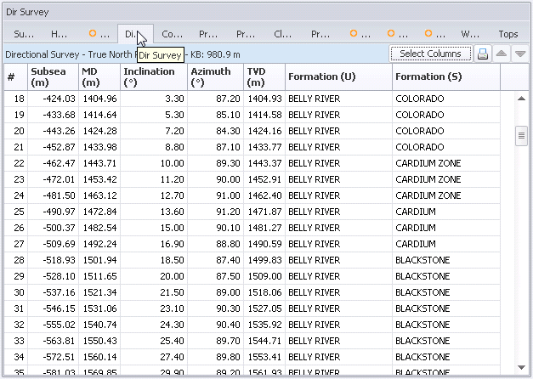

The Dir Survey tab appears.

For details on configuring the columns to display and the left-to-right order in which they appear, see Related Topics below.
Right-click the display grid and select either Copy to Clipboard or Send to Excel from the context menu.

Click Print in the main DataCard ribbon () or in the top-right of the Directional Survey tab () to display a Print dialog box where you output this data to a printer or text file, or copy it to the clipboard and paste it into other applications.
