Data Diagnostics Flowchart
Click to show / hide the common causes for data inconsistencies:
- Recompletion, reperf, refrac
- Fracture cleanup
- Wellbore cleanup
- Liquid loading
- Slugging
- Tubing changeout
- Changing flowpath
- Under-reported workovers
- Incorrect pressure source and flow path
- Pressure or rate averaging
- Out of sync pressure and rate timetracks
- Missing flowing pressures or rates
- Incorrect initial pressure
- Misreported water production
- Significant increase in water gas ratio (WGR)
Use the flowchart below to evaluate the quality of your data:
|
Start pre-analysis diagnostics here
|
|||
|

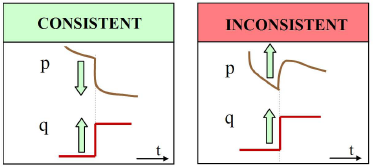

Do the instantaneous changes in pressure and rate correlate?
|
|
See the step change correlation on the Rate and Pressure vs Time plot. |
|

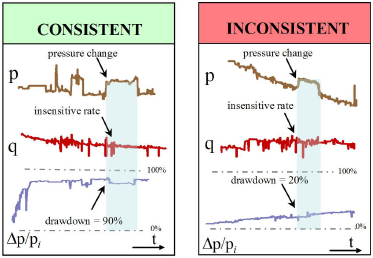

Is the well operating under high drawdown?
|
|
See the drawdown plot. |
|
Is the trend in rate and pressure consistent?
|
|
See the trend correlation on the Rate and Pressure vs Time plot. |
|

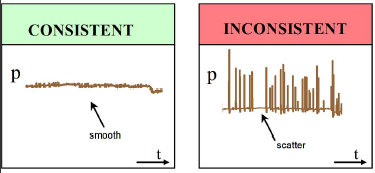

Is the data smooth?
|
|
See the stable data and continuous smooth data plots on the Rate and Pressure vs Time plot. |
|

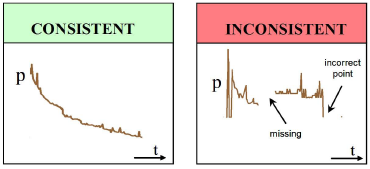

Have the outliers been removed?
|
|
See the continuous smooth data plot on the Rate and Pressure vs Time plot. |
|

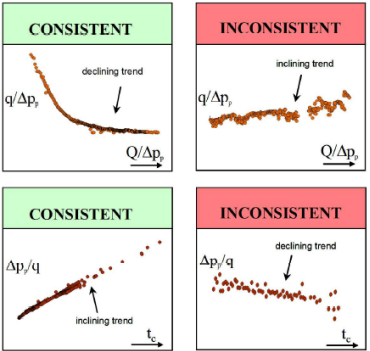

Does the Blasingame graph continuously decline?
|
|
See the Blasingame and NPI plots |
|

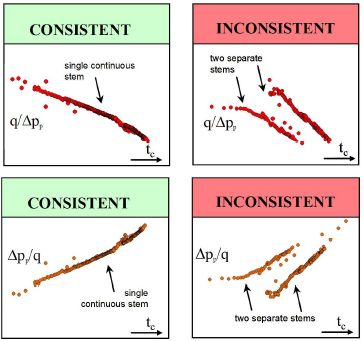

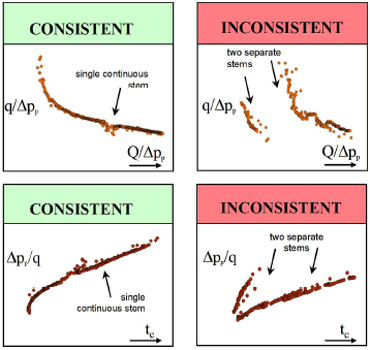

Do the Blasingame or NPI plots contain a single continuous stem?
|
|
See the Blasingame and NPI plots |
|
Does the FMB rate plot trend decline?
|
|
See the FMB rate and FMB pressure plots |
|
Do the FMB rate or pressure plots have a single continuous stem?
|
|
See the FMB rate and FMB pressure plots |
|
Is the gas rate above the critical Turner rate?
|
|
See the Turner rate plot |
|
Is the water rate reported?
|
|
See the WGR and water rate plot |
|

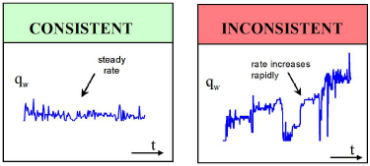

Is the water rate free of rapid increases?
|
|
See the WGR and water rate plot |
|

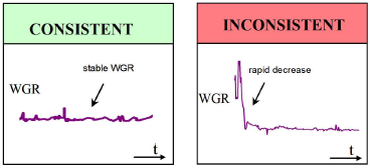

Is WGR free of rapid decreases?
|
|
See the WGR and water rate plot |
|

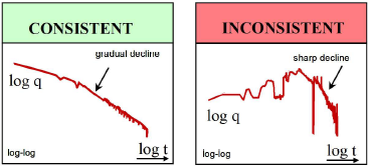

Is the gas rate on the log-log plot free of sharp declines?
|
|
See the Log Gas rate plot |
|
Finish. Proceed to analysis |
