Injection inflow

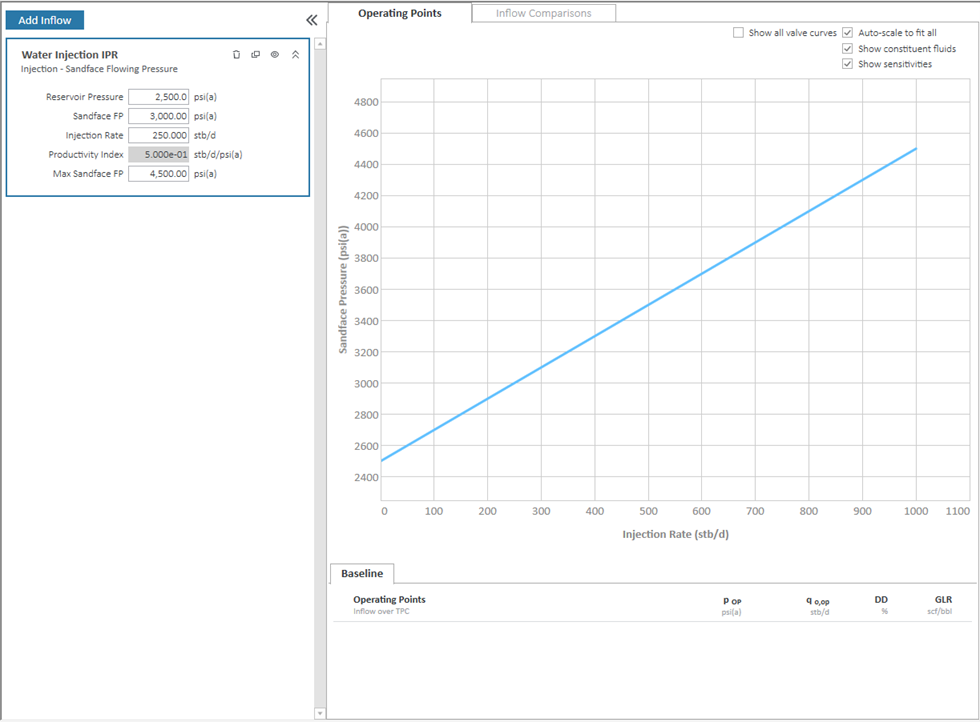

By using the Injection inflow, you can estimate a well's inflow performance relationship (IPR) by entering:

• Reservoir pressure, and either

• Test data (measured injection rate at a specified sandface pressure), or

• Productivity Index (can be used instead of test data)

• Max Sandface FP (required to complete the injection IPR curve)

This inflow method uses a linear IPR trend with a constant productivity (or injectivity) index.

Note: Injection Inflows cannot be linked with Outflow curves at this time.
