Changing time models
Change the dimensions and display properties of the time
model and also the display properties of synthetic traces themselves.
Create multi-offset models for amplitude offset
analysis. If summing traces, you can define groups of traces (near, middle, far) and then using mathematical operations between the three groups, filter or enhance certain portions of the offset trace. For example, you might subtract the far traces from the near traces and then multiply the difference by the far traces to enhance the far offset amplitude.
To change time models:
1. Open the l dialog box:
- From the main menu: Edit > Display Parameters...
- From the toolbar click (
)
- Double-click on the time model.
The
dialog box opens on the Display tab.
- Set all display configuration
options for your model.
- Click the Parameters tab .
- Select the processing options and if generating a multi offset model

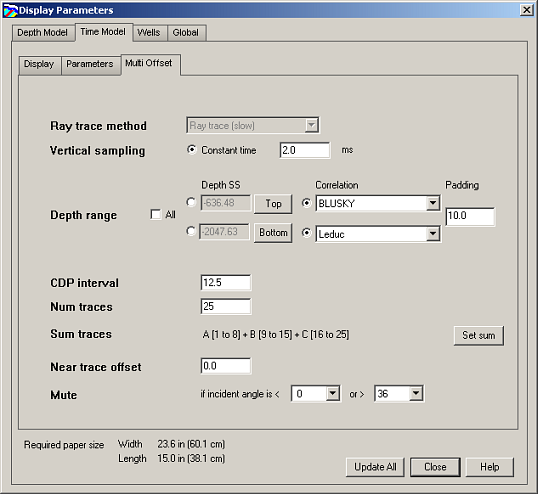

- Click the Multi Offset tab. If any of the curves required for multi-offset modeling are missing, GeoSyn prompts you to generate them.
- Select the multi-offset options and then click Update All.
