Toolbars

Harmony has many toolbars. Some toolbars have icons that are specific to a certain toolbar (for example, the GIS toolbar), while other toolbars have common icons. This topic describes the most common toolbars and related icons.

Main toolbar

The main toolbar has the following icons:

Import file — imports a file. For more information, see import well data from a file

Import from database — imports data from a database. For more information, see import well data from a database.

Import / Update from Enerdeq or IHDC — imports / updates your Harmony project with data from Enerdeq or IHDC. For more information, see import from Enerdeq.

Import Harmony Data — select either:
- Harmony Project — imports a project from single-user Harmony. (You can import a single file or multiple files.)
- Harmony Local DB Data — imports data from a local database extracted from multi-user Harmony. For more information, see importing from multi-user Harmony. (You can import a single file, or you can bulk import multiple files in the Browse dialog box.)
Extract Wells — you can extract a portion of the data from an existing Harmony project to create a new project. This function is useful, for example, for breaking a master project into smaller files (which you can merge at a later date), or for sending a portion of the data in your project to technical support. The following data is available for extracting: wells and their attributes, custom attributes, production, custom datasets, worksheets, analyses, reference dates (excluding active reference dates), wellbore data, wellbore configurations, and hybrid models.

Note: You need to install a LocalDB (under Shared Features for SQL Server Express 2012 / 2014 or SQL Server 2012 / 2014) in order to extract wells. If you attempt to extract wells without a local database, an error message is displayed.

Export decline analyses or forecasts — export parameters from decline and multi-segment decline analyses, or export all forecasts. For more information, see export data.
Options — opens the Options dialog box, which contains settings for various processes in Harmony.

Any of the User Settings you change are applied after you close the dialog box, and do not impact existing entities. However, Shared Settings are database settings that apply to all entities, both new and old.
Reference Dates — opens the Reference Dates dialog box where you can create a new reference date, specify the active reference date, or hide archived reserve analyses.
Toggle units — switches the units displayed between metric and field (imperial).
Refresh — reads the most up-to-date information from the data source you are connected to. Click this icon to see / get changes made by other users connected to the same data source.
Help — opens the online help.
Project Filter — click the drop-down list to select a filter you previously created, modify a filter, or select no filter (the default setting). Selecting Modify Filters For more information, see project filters.

Plot toolbars

Different plots have different icons available on their toolbars. The most common icons are listed below:

Set Mouse to Default — switches the cursor to its default state. When the cursor is in its default state, you can hover over any dataset displayed on the plot to read its values on the tooltip.
Display a toolbar with options to zoom — opens an additional toolbar with zooming options:
- Point Zoom — click a data point to zoom in 50%.
- Rectangular Zoom — click-and-drag a rectangle around the area you want to zoom into.
- Undo last zoom — undo your latest zoom.
- Undo all zooms — resets the plot display to your original view.
Pan Data — switches the cursor to a Pan Data state. When the cursor is in this state, you can pan the x- and/or y-axes by clicking-and-dragging within the plot or the desired axis.
Print — opens the Print dialog box.
Print Preview — opens the Plot (Preview) window where you can adjust how your plot prints.
Create Annotation — opens the Create Annotation dialog box. Select your type of annotation from the Attach To drop-down list:
- screen — attaches your annotation to a fixed area on the screen. This annotation retains its position, if you rescale your axes.
- plot — attaches your annotation to a fixed area on the plot. This annotation moves with the plot, if you rescale your axes.
- data — (default setting) attaches your annotation to an x- and y-data point. If you use your keyboard arrow keys, you can move your annotation along the dataset and view the coordinate values of each plotted point. This annotation moves with the data point, if you rescale your axes.
/ Toggle the Autoscaling Option for the Plot — switches automatic scaling on and off. When automatic scaling is on (the icon is in the state), the plot scales adjust to fit all the data whenever the data is modified. When automatic scaling is off (the icon is in the state), the plot scales remain unchanged whenever the data is modified.
Rescale all axes — adjusts the minimum and maximum of the x- and y-axes to fit all data within the plot.
Display a toolbar with options to select data points — opens an additional toolbar with point-selection options for best-fitting your analysis. These icons are described from left-to-right.

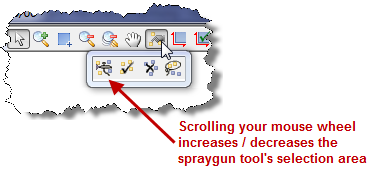

- spray gun — selects points when you left-click, and deselects points when you right-click. The mouse wheel can be used to change the spread-tool's size.
- select all data points — selects all the data points on the plot.
- deselect all data points — deselects all the data points on the plot.
- lasso — select points by clicking-and-dragging a shape around your data points. Deselect points by right-clicking-and-dragging a shape around the data points you do not want.
/ Maximize / Restore Window — if the plot is a part of a dashboard, the Maximize / Restore window switches between displaying just one plot and displaying all plots on the dashboard.
Add a diagnostic line — adds a diagnostic line to your plot, which can be useful for identifying and extrapolating trends in the data.
Plot options drop-down list — select your options (for example, coordinate, log). Note that your plot options vary depending on the type of plot you select.

Pane toolbars

Different panes have different icons available on their toolbars. The most common icons are listed below:

/ Add / Remove — adds / removes objects displayed on the pane.
/ Expand All / Collapse All — expands / collapses all nodes of the tree structure displayed on the pane.
/ Deselect all series / Select all series — deselects / selects all of the items in the tree structure.
Import — imports data related to the pane.

Undo — undo changes to data inputs, series display selections, and column-specific unit and precision changes.
Redo — redo changes that have been undone.
Export to Excel — create a *.csv file of the data displayed in the table.

Table toolbars

Different tables have different icons available on their toolbars. The most common icons are listed below:

Print — opens the Print dialog box. Note that if you are running a demo version, a "Demo Copy" watermark is applied.
Print Preview — opens the Grid (Preview) window where you can adjust how your table prints. Note that if you are running a demo version, a "Demo Copy" watermark is applied.
Export to Excel — saves your table data to a .csv file.
